Features & System requirements
Bazille: Monster from the deep
The second spawn of the Berlin Modular project, Bazille is a large polyphonic modular system with digital (PD, FM based) oscillators, multimode filters and plenty of modulation options. With so much connectivity to explore, patching in Bazille should keep you fascinated for many years – it’s definitely a “geek machine”!
- modular, stereo, up to 16-voice polyphonic
- 4 digital oscillators based on phase distortion (PD) with FM and fractal resonance (FR)
- 4 self-oscillating multimode filters with up to 6 parallel outputs each
- 4 ADSR envelopes with Fall/Rise for the sustain stage, overall rate can be modulated
- 2 LFOs with 3 parallel outputs each, unipolar option
- 16-step morphing sequence per voice, with 8 snapshots and 4 output taps
- 2 mapping generators with up to 128 steps, comprehensive drawing tools, presets…
- maps can be used as oscillator waveforms
- 4 Multiplex modules for mixing signals, cross-fading, ring modulation, amplitude
- modulation etc.
- 4 effects: stereo delay, distortion (6 types), phaser (2 types), spring reverb
- 2x inverter, 2x rectifier, sample & hold, 2x twin lag generators, quantizer
over 1700 factory presets
NEW in v1.1.2: Support for Oddsound MTS-ESP
At the time we released our current plugin versions, Avid could not provide an AAX SDK that would let us build Universal Binary AAX plugins. For this reason, we currently cannot support Pro Tools for Mac. Pro Tools for Windows is still supported.
For the time being, macOS Pro Tools users who are not running the native Silicon version should use the previous versions of our plugins, available from the Release Archive.
We hope to start work on native Silicon AAX support this year, as soon as our tight schedule allows. No ETA can be quoted yet.

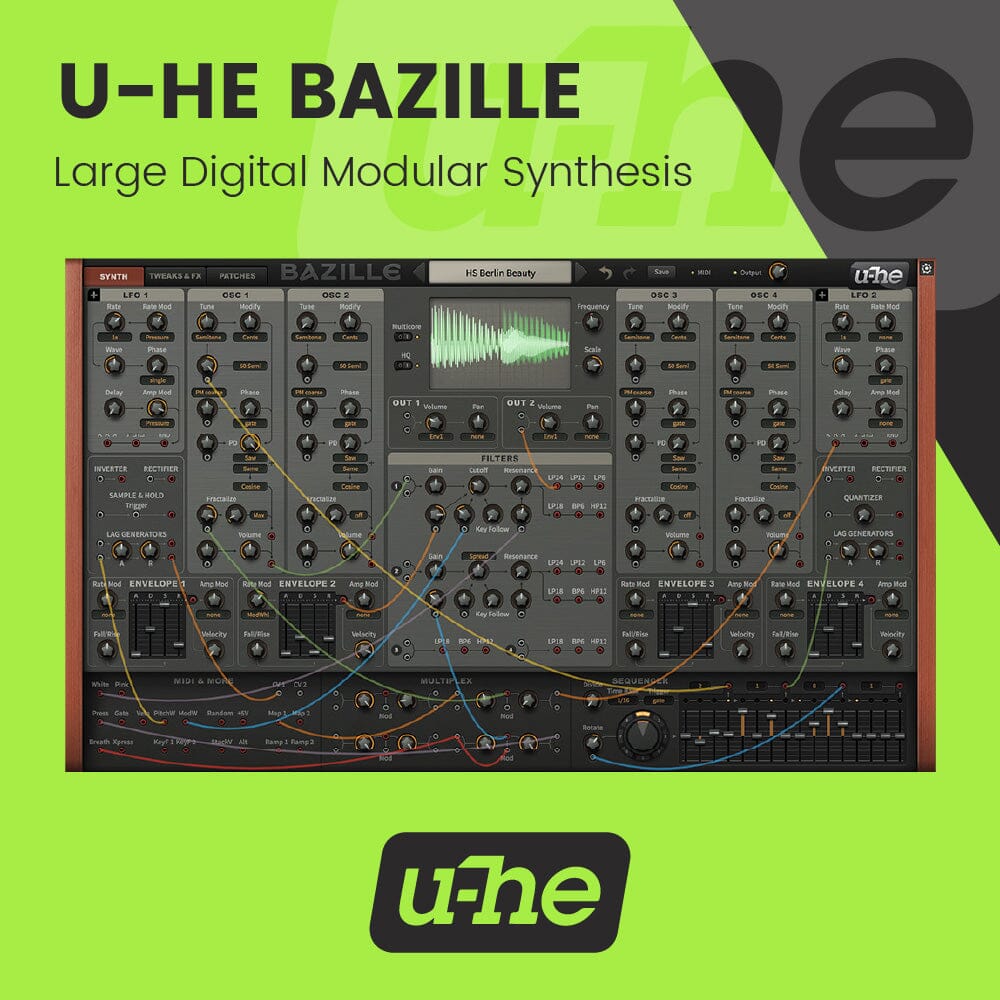

Bazille is highly unusual for a modular synth.
Although the filters are traditional analogue models, the oscillators are unashamedly digital: They combine the two technologies that made digital synthesis affordable (and analogue synths suddenly unfashionable) in the
1980s – FM (frequency modulation, more correctly ‘phase modulation’) and PD (phase distortion).
In Bazille, each oscillator panel has five distinct sections:
Pitch, Phase / FM, Phase Distortion, Fractal Resonance, and the Outputs, each with a modulation input.
Since the 4 main oscillators have a frequency range which starts at zero Hertz, they can be used as synchronized or unsynchronized LFOs or also adopt custom shapes thanks to Bazille's mapping generators. The oscillators are also capable of all kinds of FM sounds by plugging an audio-frequency source into the phase modulation input.
One of the most interesting features included in Bazille's powerful oscillators is an unusual process we call Fractalize (fractal resonance). This can be used to create very bold sounds from tame waveforms, with a similar result to the classic cutting sound of the sync effect.
gnal sourcesAn array of output sockets provide signals from a variety of different sources: noise, MIDI controls (modwheel, velocity etc.), mapping generator and more…
The pair of Mapping Generators can be used for a variety of purposes: To reshape modulation sources, to define per-MIDI-note offsets or to step through values e.g. for round-robin effects… There are 4 modes available, and both generators can have maps with up to 128 steps. They are very flexible, allowing custom shapes thanks to the drawing tools and presets accessible with a right-click of the mouse.
The little multiple" modules you can find in most analogue modular systems are simple mix/split devices. As Bazille’s output sockets can accommodate several cables, the humble multiple underwent a serious redesign, emerging as something so flexible that we had to rename it Multiplex. The 4 units are very “general-purpose”: They can be used as signal mixers, cross faders, ring modulators, amplitude modulators, and more…
Would you prefer all controls on a single page?
Bazille ships with a larger but more compact skin called GearPorn which dramatically alters the user experience. Ideal for Bazille experts, the skin of choice for ambitious novices.
To enable the skin, just right-click on Bazille's interface and select it from the menu.
- Mac OS X 10.10 or newer
- Windows logoWindows 7 or newer
- Linux logoLinux
Host software / DAW
- 1GB RAM, more recommended
- 50MB free disk space
- 1000 × 600 or larger display
- Modern CPU required:
- Windows/Linux: Intel Nehalem or newer, AMD Bulldozer or newer
- Mac: Intel Nehalem or newer, Apple M1
- Linux: glibc version 2.28 or newer
Ace is not a standalone product, it requires host software. Repro is compatible with nearly all DAWs.
- AUv2, VST2, VST3, 64-bit only
- temporarily no AAX (read more)
- VST2, VST3, AAX*
* AAX requires Pro Tools 10.3.7 or later
